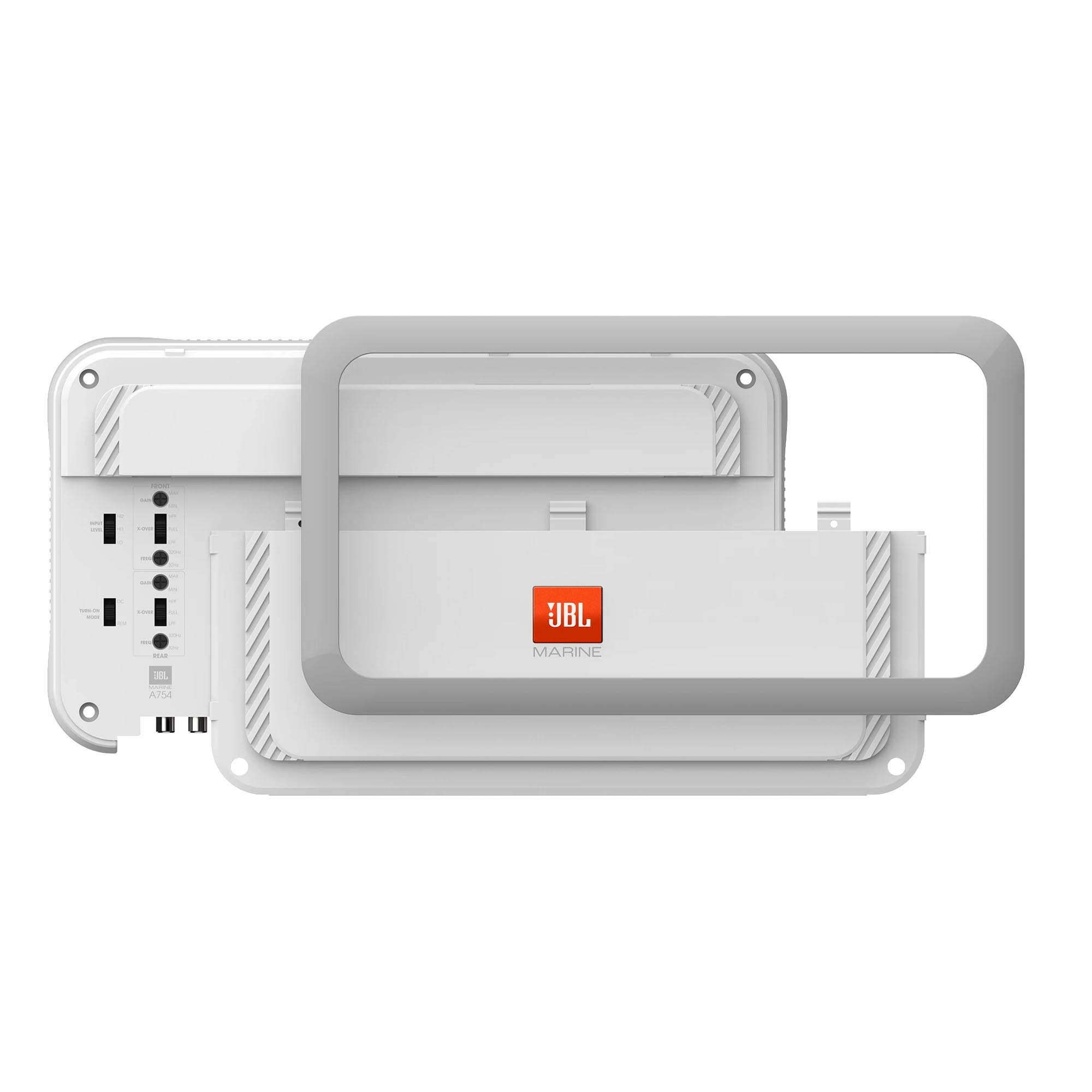

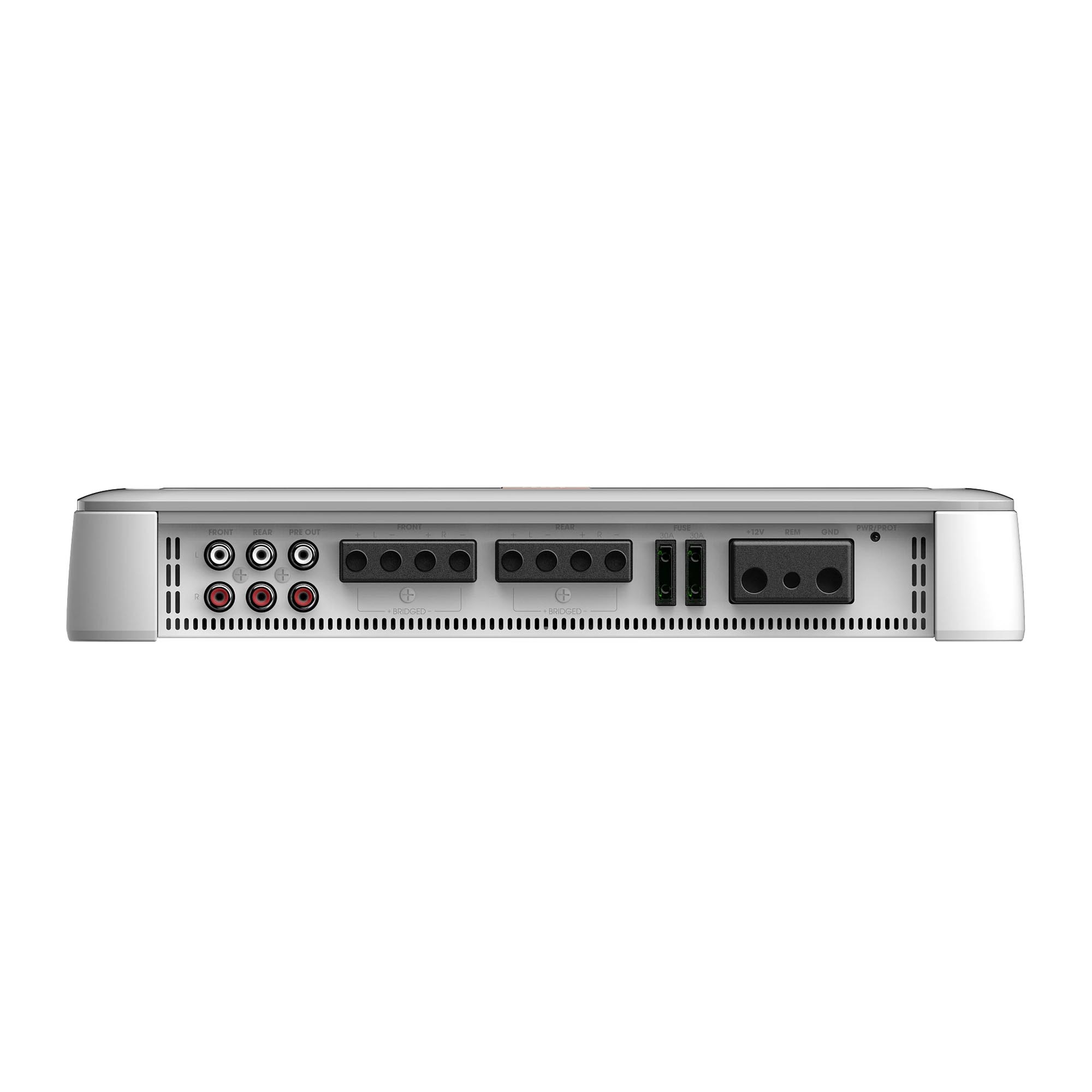

JBL MA754AM 4-Channel Amplifier - 75W [JBLMA754AM]

<p></p><p><strong>MA754AM 4-Channel Amplifier - 75W</strong></p><p>The marine A754 4-channel amplifier delivers a powerful 75-watt RMS to each of the front and rear speakers in a boat. You can also bridge the amp to 2-channel mode to drive a couple of subs with a 200-watt RMS or 3-channel mode to drive both a pair of full-range speakers and a subwoofer.</p><p>Speaker-level inputs allow this amplifier to integrate into almost any system, even one using a marine factory radio. Separate high-pass and low-pass crossovers on the front and rear channels allow users to dial in the perfect roll-off to best suit speaker placement and cabin acoustics.</p><p><strong>Features:</strong></p><ul><li>Compact size</li><li>High and low-level input</li><li>Variable crossover and bass boost</li><li>Low noise and distortion</li><li>Input Level Control</li><li>Full on-board protection &nbsp;</li><li>Phase Switch</li><li>RBC wired remote</li><li>Class D amp technology</li><li>Turn-on mode</li></ul><p><strong>General Specifications:</strong></p><ul><li>4-channel marine amplifier</li><li>75 watts RMS x 4 at 4 ohms (100 watts RMS x 4 at 2 ohms)</li><li>200 watts RMS x 2 at 4 ohms in bridged mode (4-ohm stable in bridged mode)</li><li>Variable high- and low-pass filters (32-320 Hz, 12 dB/octave) on front and rear channels</li><li>Preamp and speaker-level inputs</li><li>Preamp outputs</li><li>Fuse rating</li><li>30A x 2</li><li>8-gauge power and ground leads recommended — wiring and hardware not included with amplifier</li><li>Dimensions (W x H x D) 320mm x 51.3mm x 180mm (12-5/8” x 2-1/16" x 7-1/8”)</li></ul><p><strong>What’s in the Box:</strong></p><ul><li>One marine A754 4-channel amplifier</li><li>4 Bare wire-to-RCA adapters</li><li>Four 30A ATO fuses (2 installed, 2 spare)</li><li>Two JBL stickers</li><li>Owner's Manual</li><li>4 Mounting screws (M4 x 53mm)</li><li>1 logo badge</li></ul> <p></p><p><b>Specifications:</b></p><ul><li>Bridgeable: Yes</li><li>Channels - Available: 4</li><li>Watts: 75w</li><li>Box Dimensions: 5"H x 9"W x 15"L WT: 7.55 lbs</li><li>UPC: 050036396943</li></ul><br><a href="https://productimageserver.com/literature/quickGuide/102889QG.pdf">Quick Guide (pdf)</a><br><a href="https://productimageserver.com/literature/ownersManual/102889OM.pdf">Owner's Manual (pdf)</a>

• MA754AM 4-Channel Amplifier - 75WThe marine A754 4-channel amplifier delivers a powerful 75-watt RMS to each of the front and rear speakers in a boat. You can also bridge the amp to 2-channel mode to drive a couple of subs with a 200-watt RMS or 3-channel mode to drive both a pair of full-range speakers and a subwoofer.Speaker-level inputs allow this amplifier to integrate into almost any system, even one using a marine factory radio. Separate high-pass and low-pass crossovers on the front and rear channels allow users to dial in the perfect roll-off to best suit speaker placement and cabin acoustics.Features:
• Compact size
• High and low-level input
• Variable crossover and bass boost
• Low noise and distortion
• Input Level Control
• Full on-board protection
• Phase Switch
• RBC wired remote
• Class D amp technology
• Turn-on modeGeneral Specifications:
• 4-channel marine amplifier
• 75 watts RMS x 4 at 4 ohms (100 watts RMS x 4 at 2 ohms)
• 200 watts RMS x 2 at 4 ohms in bridged mode (4-ohm stable in bridged mode)
• Variable high- and low-pass filters (32-320 Hz, 12 dB/octave) on front and rear channels
• Preamp and speaker-level inputs
• Preamp outputs
• Fuse rating
• 30A x 2
• 8-gauge power and ground leads recommended — wiring and hardware not included with amplifier
• Dimensions (W x H x D) 320mm x 51.3mm x 180mm (12-5/8” x 2-1/16" x 7-1/8”)What’s in the Box:
• One marine A754 4-channel amplifier
• 4 Bare wire-to-RCA adapters
• Four 30A ATO fuses (2 installed, 2 spare)
• Two JBL stickers
• Owner's Manual
• 4 Mounting screws (M4 x 53mm)
• 1 logo badge Specifications:
• Bridgeable: Yes
• Channels - Available: 4
• Watts: 75w
• Box Dimensions: 5"H x 9"W x 15"L WT: 7.55 lbs
• UPC: 050036396943Quick Guide (pdf)Owner's Manual (pdf)
